Water Well Screen Pipe

Water well screen /wedge wire screen/screen pipe/wire wrapped screen pipe

Materials: carbon steel and stainless steel (302, 304, 304L, 316, 316L etc).

characteristics: The welded stainless steel water well screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Uses: The strainer is a kind of filtered water tubing with the perforation. It can be used with the deep well pump, dive water pump, water-treatment equipment, environmental protection, sea water transforming into the industrial water treatment and life use water desalination treatment, running water treatment, water softening treatment and the petroleum industry. It can also be used as petroleum product terminal filters, chemical acid, the alkali liquid filters, ethyl alcohol and organic solution recycling filters, etc.

Features of products

  • A continuous slot opening significantly increases the available open area, thus providing greater access to the water bearing zone.
  • A V-shaped profile wire avoids clogging and ensures an uninterrupted flow.
  • A uniform and efficient well development due to the continuous slot opening.
  • Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
  • Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Advantage

  1. Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
  2. Low cost operation screens with high open area favor groundwater infiltration. Abundant water reduces the water level’s down, thus saving energy consumption.
  3. Reduce the abrasion of the pump
    Under the same condition, high open area makes the speed of groundwater’s entering into the screen much slower than any other filtration apparatus, which avoids sand’s entering into screen because of high pressure, thus reducing the abrasion of the pump.
  4. Extend the life span of wells
    Comparatively, groundwater’s entering into the screen with higher open area is much easier than the entering into the screen with lower open area. The slow water flow shall extend the life span of wells.
Water Well Screen Pipe - 1

Art.No. SJWWSP-

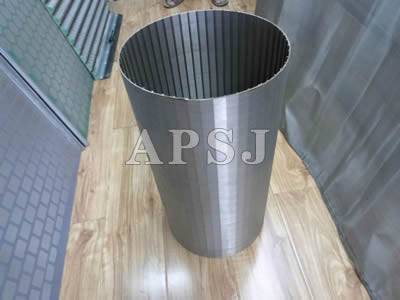

Water Well Screen Pipe - 2

Art.No. SJWWSP-

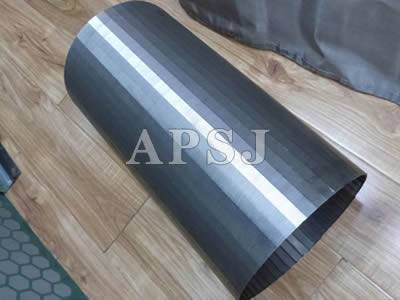

Water Well Screen Pipe - 3

Art.No. SJWWSP-

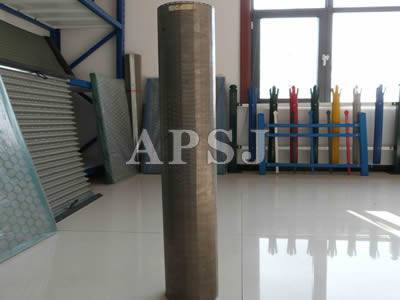

Water Well Screen Pipe - 4

Art.No. SJWWSP-

SIZE
(INCH)
O.D
(MM)
SLOT
(INCH)
LENGTH
(M)
COLLAPSE
STRENGTH
(PSI)
TENSILE
WEIGHT
(TON)
WRAP(thick*deep)
(MM)
RODS
(MM)
4 117 0.040 3 395 6 2.2*3.0 3.8MM/22
4 114.3 0.040 3 395 6 2.3*3.0 3.8MM/22
6 168.3 0.040 3 252 8 2.3*3.5 3.8MM/32
8 219.1 0.010 3 399 10.5 3.0*5.0 3.8MM/48
8 219.1 0.020 3 370 10.5 3.0*5.0 3.8MM/48
8 219.1 0.040 3 323 10.5 3.0*5.0 3.8MM/48
10 273.1 0.010 3 206 11 3.0*5.0 3.8MM/50
10 273.1 0.020 3 191 11 3.0*5.0 3.8MM/50
10 273.1 0.040 3 167 11 3.0*5.0 3.8MM/50

Contact Us

If you need to consult the price, please contact the business department by E-mail: info@shakerscreen.org

When you contact us, please provide your detail requirements. That will help us give you a valid quotation.
