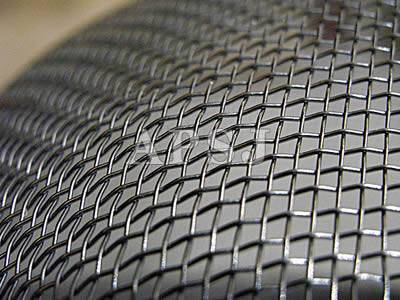

Square Wire Mesh

Material: Galvanized iron wire, or stainless steel wire.

Property: Square Wire Mesh is made of selected low carbon iron wire with precision construction, uniform mesh, fine rust-resisting and durable function.

Packing: In rolls, wrapped with waterproof paper then covered with hessian-cloth. Special packing may be arranged if necessary.

Uses: Square Wire Mesh is widely used in industries and constructions to sieve grain powder, filter liquid and gas for other purposes like safe guards on machinery enclosures. Besides, it is widely applied for the substitute of wood strips in making wall and ceiling.

Specifications: Please refer to lists below for reference. Sizes not listed available at customers request.

Assortments available:

  • Crimped square wire mesh
  • Standard square wire mesh
  • Hot-dipped galvanized after woven square wire mesh
  • Galvanized after woven square wire mesh
  • Galvanized before woven square wire mesh
  • Iron square wire mesh
Square Wire Mesh - 1

Art.No. SJSWM-

Square Wire Mesh - 2

Art.No. SJSWM-

Wire Gauge (BWG)
mesh/inch
Wire Gauge (BWG)
mesh/inch
3mesh×21BWG×3'×100' 22mesh×33BWG×3'×100'
4mesh×23BWG 24mesh×35BWG
5mesh×24BWG 25mesh×35BWG
6mesh×25BWG 26mesh×36BWG×1m×25m
8mesh×24BWG 26mesh×36BWG×3'×100'
8mesh×26BWG 28mesh×36BWG
10mesh×27BWG 30mesh×36BWG
10mesh×28BWG 30mesh×36BWG×1m×25m
12mesh×29BWG 30mesh×36.5BWG×1m×25m
14mesh×28BWG 35mesh×36BWG×3'×100'
14mesh×30BWG 40mesh×38BWG
16mesh×30BWG 40mesh×38BWG×1m×25m
18mesh×30BWG 45mesh×38BWG×3'×100'
20mesh×32BWG 50mesh×38BWG
20mesh×33BWG 60mesh×38BWG
22mesh×32BWG -
Note: Other specifications are available at the customer's request.
