Galvanized Iron Wire Mesh

Galvanized iron wire mesh can be divided into electro galvanized wire mesh and hot dipped zinc coated wire mesh.

Galvanized wire mesh is made by weaving galvanized iron wire.

Application: Galvanized wire mesh is mostly used as window screen , industrial sieves in sugar,chemical,stone crusher industries,Also in sieveing grain.

Varieties: Hot dipped galvanized before or after weaving; Electric galvanized before or after weaving.

Galvanized Iron Wire Mesh - 1

Art.No. SJGIWM-

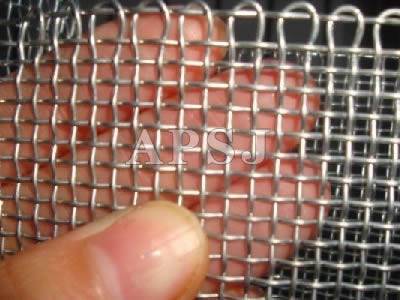

Galvanized Iron Wire Mesh - 2

Art.No. SJGIWM-

Galvanized Iron Wire Mesh - 3

Art.No. SJGIWM-

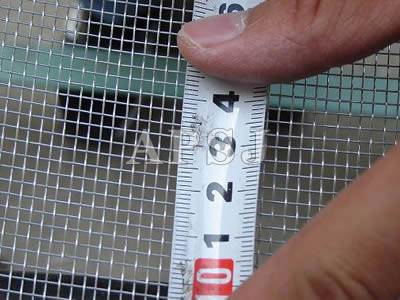

Galvanized Iron Wire Mesh - 4

Art.No. SJGIWM-

Specification Wire Dia.(mm) Opening(mm)
3 mesh 1.60 6.87
4 mesh 1.20 5.15
5 mesh 0.95 4.13
6 mesh 0.80 3.43
8 mesh 0.70 2.43
10 mesh 0.60 1.94
12 mesh 0.55 1.56
14 mesh 0.41 1.40
16 mesh 0.35 1.24
18 mesh 0.30 1.11
20 mesh 0.27 1.00
22 mesh 0.25 0.90
24 mesh 0.23 0.83
26 mesh 0.20 0.78
28 mesh 0.18 0.73
30 mesh 0.15 0.70
35 mesh 0.14 0.59
40 mesh 0.14 0.50
50 mesh 0.12 0.39
60 mesh 0.12 0.30
