Steel Grating

Steel grating is made by welding flat steel and bars at certain distances. It goes through cutting, opening, edging and other processes. This product enjoys the features of high strength, light structure, high bearing, convenience for loading and other properties. The hot dip zinc coating gives the product excellent anti-corrosion resistance.

Steel grating has light weight, good strength, large carrying capacity and can save materials and cost. It offers good ventilation of light and wind, a modern sense, aesthetic appearance and anti-skid safety. It is also easy to clean, easy to install and durable for uses.

Steel grating is widely used in platforms, corridors, bridges, well covers, stairs, fencing for petroleum, chemical, power plants, waste treatment plants, civil engineering projects and environmental projects.

Steel Grating - 1

Art.No. SJSG-

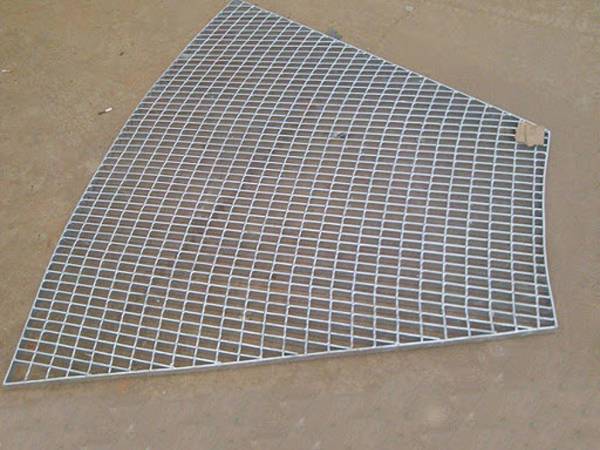

Steel Grating - 2

Art.No. SJSG-

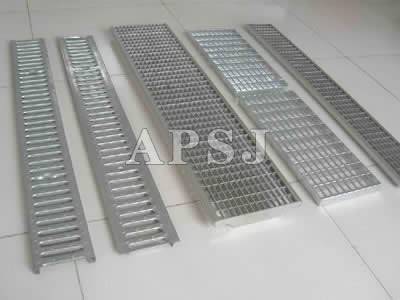

Steel Grating - 3

Art.No. SJSG-

Specification list of Steel Grating
Series No Vertical
Bar
Spacing
Horizontal
Bar
Spacing
Specification of Supporting Flat Steel
Width X Thickness
(mm) (mm)
20×3 25×3 32×3 40×3 20×5 25×5
1 30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
2 40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
3 60 50 - G253/60/50 G323/60/50 G403/60/50 G205/60/50 G255/60/50
32×5 40×5 45×5 50×5 55×5 60×5
4 30 100 G325/30/100 G405/30/100 G455/30/100 G500/30/100 G555/30/100 G605/30/100
50 G325/30/50 G405/30/50 G455/30/50 G500/30/50 G555/30/50 G605/30/50
5 40 100 G325/40/100 G405/40/100 G455/40/100 G500/40/100 G555/40/100 G605/40/100
50 G325/40/50 G405/40/50 G455/40/50 G500/40/50 G555/40/50 G605/40/50
6 60 50 G325/60/50 G405/60/50 G455/60/50 G500/60/50 G555/60/50 G605/60/50

Contact Us

If you need to consult the price, please contact the business department by E-mail: info@shakerscreen.org

When you contact us, please provide your detail requirements. That will help us give you a valid quotation.
