Welded Wire Mesh Panels

Welded wire mesh panel is made of superior quality welded mesh, with flat even surface, firm structure, be used extensively in building, food, agriculture and so on.

Feature: corrosion resistance, aging resistance, sunshine resistance and weather resistance.

Forms of corrosion resistance: Electric galvanizing, hot-dipped galvanizing, PVC spraying and PVC coating.

Products Information
Material Low carbon steel wire, galvanized wire, stainless steel wire, aluminum-magnesium alloy wire
Process Welded after galvanized and galvanized after welding
Mesh 75mm x 150mm
Size 1800mm x 3000mm(or more)
PVC Coating Thickness 0.5mm ~ 1.0mm
Packing Bare or pallet
Common Specification
Wire Diameter Mesh Width
inch mm
2.0mm ~ 3.2mm 1" 25.40 0.914m ~ 1.83m
2.0mm ~ 4.5mm 2" 50.80 0.914m ~ 2.75m
2.0mm ~ 6.0mm 3" 70.20 0.914m ~ 2.75m
2.0mm ~ 6.0mm 4" 101.6 0.914m ~ 2.75m
2.0mm ~ 6.0mm 5" 127.0 0.914m ~ 2.75m
2.0mm ~ 6.0mm 6" 152.4 0.914m ~ 2.75m
2.0mm ~ 6.0mm 7" 177.8 0.914m ~ 2.75m
2.0mm ~ 6.0mm 8" 203.2 0.914m ~ 2.75m
Welded Wire Mesh Panels - 1

Art.No. SJWWMP-

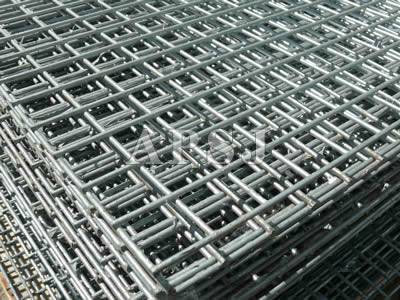

Welded Wire Mesh Panels - 2

Art.No. SJWWMP-

Welded Wire Mesh Panels - 3

Art.No. SJWWMP-

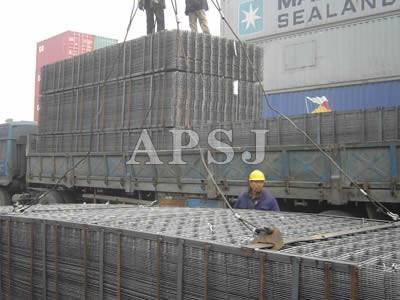

Welded Wire Mesh Panels - 4

Art.No. SJWWMP-

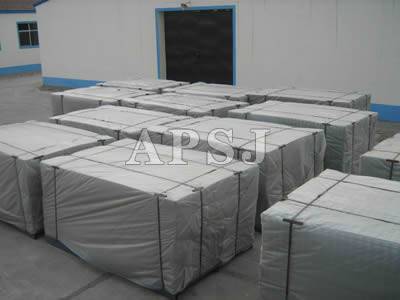

Welded Wire Mesh Panels - 5

Art.No. SJWWMP-

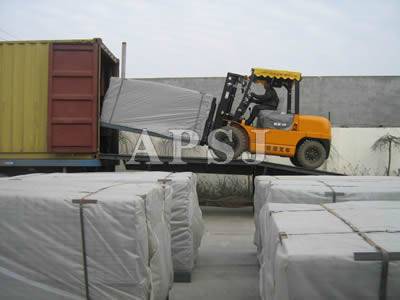

Welded Wire Mesh Panels - 6

Art.No. SJWWMP-
