Composite Shaker Screen

Composite shaker screen is similar like the hook strip flat screen in the structure. Its main features are as follow:

These soft screen products are constructed with two to four layers of 304 stainless steel wire cloth and then combined with composites. Without steel backing plate, it can get an effective filtering area. The bottom thick wire cloth is not only designed to make the above screen cloth become a better filter, but also support it to extend the lifetime of the screen.

All product and company names are trademarks™ or registered® trademarks of their respective holders and not affiliated with Shengjia in any way.

Composite Screen - 1

Art.No. SJCS2-

Screen Common Model
Model Brand & Model for shaker Mesh Range Dimension (Length x Width) Weight
SJZ-12 NCS-300×2 20—325 1040 × 600 mm 1.6 kgs
SJZ-13 ZCN 20—325 1400 × 460 mm 2.6 kgs
SJZ-14 NS-115/2 20—325 1150 × 1000 mm 2.9 kgs
SJZ-15 JSS(U.S.A) 20—80 927 × 914 mm 2.3 kgs
SJZ-16 USS(U.S.A) 20—80 1524 × 1219 mm 4.6 kgs

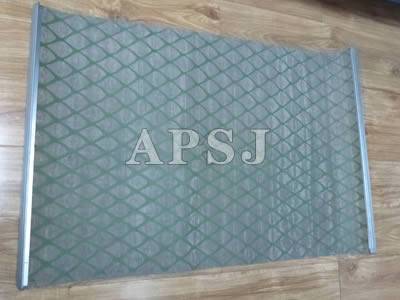

Composite Screen - 2

Art.No. SJCS2-

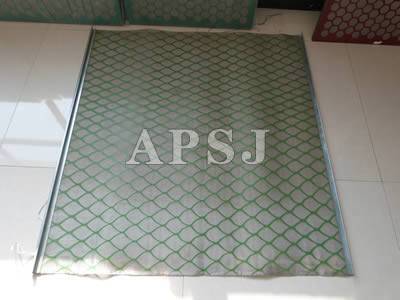

Composite Screen - 3

Art.No. SJCS2-

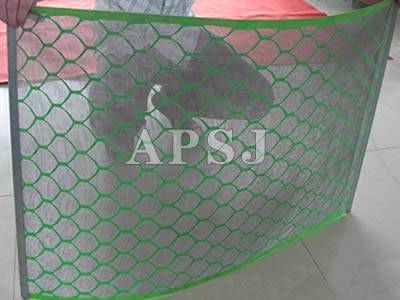

Composite Screen - 4

Art.No. SJCS2-
