Hook Strip Flat Shaker Screen

Hook strip flat shaker screen the series applied most widely at present, Main feature as follows:

  1. These screen products are constructed with two or three layers of 304 or 316 stainless steel wire cloth and then combined with a steel backing plate . According to different mesh size, steel backing plate and use intensity, we can get the best and most effective filtering area.
  2. The above thin wire cloth with middle and the bottom of the thick wire cloth, combined with steel backing plate in different thickness, can greatly enhance the use intensity of the whole screen. According to different model and client requirements, we will choose different steel backing plate form, for example, hexagonal, rectangular or square to support the above different screen cloth. The whole cloth is divided into several small independent surfaces to prevent excessive expansion damage of small part and better extend the use lifetime of the whole screen.

All product and company names are trademarks™ or registered® trademarks of their respective holders and not affiliated with Shengjia in any way.

Hook Strip Flat Screens - 1

Art.No. SJHSF-

Screen Common Model
Model Brand & Model for shaker Mesh Range Dimension (Length x Width) Weight
SJZ-1 FLC2000 PWP 20–325 1053 × 697 mm 4.8 kgs
SJZ-2 FLC500 Series PWP 20–325 1050 × 697 mm 6.1 kgs
SJZ-3 FLC313M PWP 20–325 846 × 697 mm 4.0 kgs
SJZ-4 PWP 20–325 1165 × 700 mm 5.2 kgs

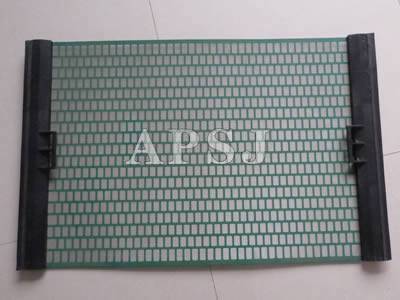

Hook Strip Flat Screens - 2

Art.No. SJHSF-

Hook Strip Flat Screens - 3

Art.No. SJHSF-

Hook Strip Flat Screens - 4

Art.No. SJHSF-

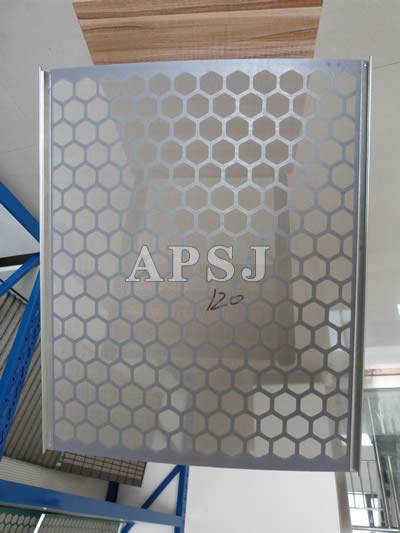

Hook Strip Flat Screens - 5

Art.No. SJHSF-

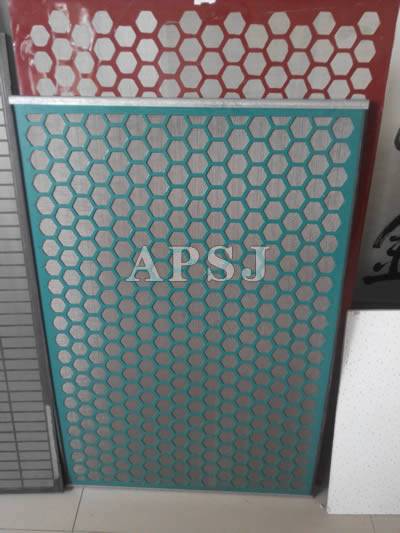

Hook Strip Flat Screens - 6

Art.No. SJHSF-
