Stainless Steel Crimped Wire Mesh

Stainless steel crimped wire mesh is made by stainless steel wire.

Weaving Patterns: Weaving after crimping.

General Use: Screening in mine, coal factory, construction and other industries. Some galvanized crimped wire mesh and stainless steel crimped wire mesh are for roasting of flour food and meat.

Wire Gauge (SWG) Wire Diameter (mm) Mesh/ Inch Aperture (mm) Weight (kg)
6 4.8 1 20.6 11.5
8 4.05 2 9 16.5
10 3.2 2 10 10.5
12 2.6 3 5.9 10.5
14 2.0 3 6.5 6
16 1.6 4 5 5.5
17 1.4 5 5.1 5.0
18 1.2 5 4 3.6
19 1.0 6 3.2 3.0
21 0.8 7 2.8 2.3
22 0.7 8 2.5 2
Stainless Steel Crimped Wire Mesh - 1

Art.No. SJSSCW-

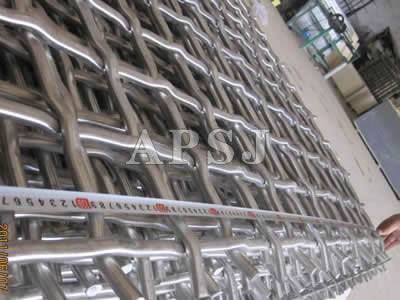

Stainless Steel Crimped Wire Mesh - 2

Art.No. SJSSCW-

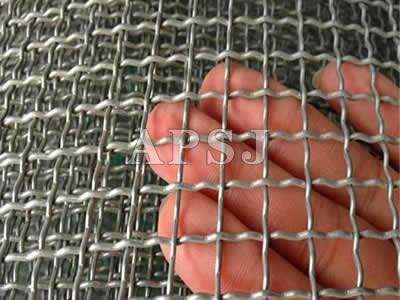

Stainless Steel Crimped Wire Mesh - 3

Art.No. SJSSCW-
