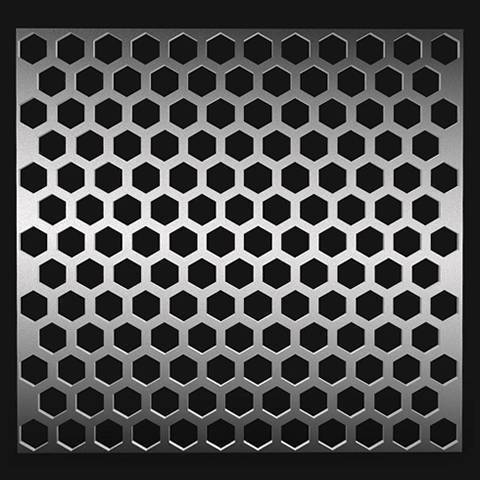

Hexagonal Hole Perforated Metal

Hexagonal hole perforated mesh can provide large open area up to 80%, which ensures a broad field of vision. The hexagonal hole perforate screen has high strength-weight ratio, so it has lighter weight than other types while the same performance.

Material: Low carbon steel, stainless steel, galvanized, aluminum, Brass and etc.
Weaving: Punching and etching, the thickness less than 0.5mm, need to be etched
Feature: Winding-resisting, aging-resisting, corrosion resisting
Hole shape: Round, long round, slot, oval, square, diamond, triangle, scale, hexangular and etc.
Thickness: 0.5mm-4mm, etc.

We can provide different sizes and shapes of perforated metal mesh according to customer requirements.

Art.No. SJHHP-

Common Specifications

Art.No. SJHHP-

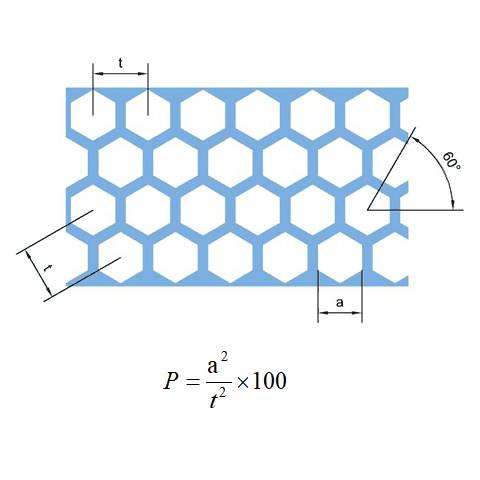

Hexagonal Hole
Item	a (mm)	t (mm)	P (%)
Sv 8-10.5	8	10.5	58.1
Sv 8-12	8	12	44.4
Sv 10-15	10	15	44.4
Sv 10-18	10	18	30.9
Sv 10-28	10	28	12.8
Sv 12-16	12	16	56.3
Sv 14-21	14	21	44.4
Sv 16-21	16	21	58.1
Sv 16-34	16	34	22.1
Sv 18-25	18	25	51.8
Sv 20-26	20	26	59.2
Sv 20-28	20	28	51.0
Sv 22-30	22	30	53.8
Sv 25-35	25	35	51.0
Sv 30-44	30	44	46.5
Sv 32-40	32	40	64.0
Sv 35-48	35	48	53.2
Sv 36-48	36	48	56.3
Sv 50-65	50	65	59.2
