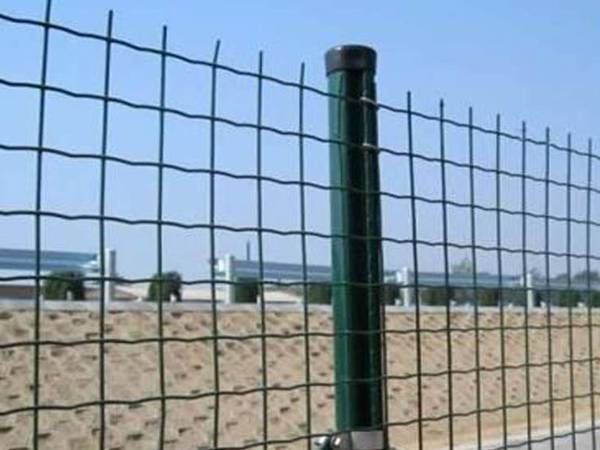

Holland Wire Mesh Fence

Holland wire mesh fence is also known as wave-shaped wire mesh, ocean wave welded fence, euro fence or wavy mesh. The panels and posts are jointed together with the special plastic clamp or high strength stainless steel wire clamp. Deep green PVC coated Holland electric welded wire meshes have beautiful and smooth appearance, and have excellent resistant to various corrosives.

Material: High quality steel wire, stainless steel wire, low carbon steel wire, PVC coated wire.
Colors: moss green or grass green. Every RAL color is available upon request.
Processing: PVC coated after welding of steel wire. Electrogalvanizing, hot-dip galvanizing or PVC coating can be done separately.

Holland Wire Mesh Fence specifications:

Mesh: 50 × 50 mm, 50 × 60 mm, 50 × 100 mm, 75 × 100 mm, 100 × 100 mm
Wire Thickness: 2.0-4.0 mm
Height: 1.00 m, 1.20 m, 1.50 m,1.80 m, 2.00 m
Post Height: 1.50 m, 1.70 m, 2.00 m, 2.50 m, 2.70 m
Surface Treatment: Galvanized + PVC coated

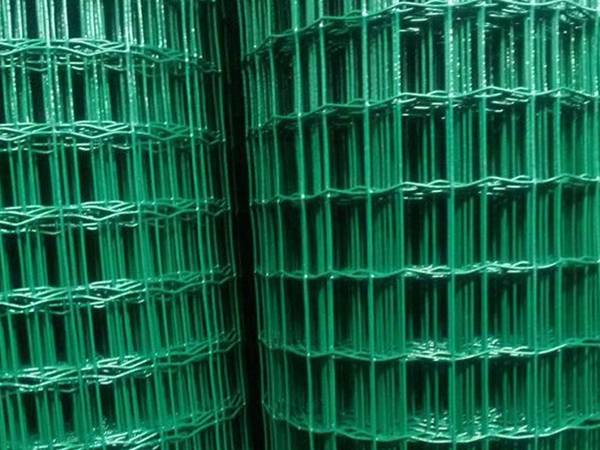

Roll Length: 10 m, 25 m, 30 m, 50 m, 100 m

We accept customized order; special request is available.

Holland wire mesh fence size table
Wire Diameter	Mesh of Aperture
Wire Diameter	Inch	MM
2.5 mm / 3.0 mm	4" × 4"	101.6mm × 101.6mm
2.5 mm / 3.0 mm	4" × 3"	101.6 mm × 75 mm
2.0 mm / 2.5 mm	4" × 2"	101.6 mm × 50.8 mm
1.9 mm / 2.4 mm	3" × 2"	75 mm × 50.8 mm
1.9 mm / 2.4 mm	2" × 2"	50.8 mm × 50.8 mm
1.9 mm / 2.4 mm	2" × 1"	50.8 mm × 25.4 mm

Holland wire Fence

Size: 2".
wire dia. (before coat/after coat): 2.00 mm / 2.50 mm.
Width: 2 m.
Tensile Strength of wires: for 2.00 mm / 2.50 mm.
Horizontal wire: 400/550 N/mm².
Vertical wire: 750/950 N/mm².
Inside Wire: Electro galvanized.
Color: RAL 6005.
Wires: straight vertical wire and crimped horizontal wire.
Packing: packed in individually plastic shrink foil. both end protected by carton disk.

Post

Material: hot-dip galvanized then spray painted.
- Thickness: 1.50 mm.
- Length: 2.50 m.
- Diameter: 48 mm.
Material: without galvanized and without spray painted. (black).
- Thickness: 1.50 mm.
- Length: 2.50 m.
- Diameter: 48 mm.

Features of Holland Wire Mesh Fence:

Fence: taking high quality steel wire as raw material, the welded panel or rolled fence after galvanizing and PVC coated can provide excellent resistant to corrosives and ultraviolet radiation.
Post: mushroom special tubes is designed refined and scientific with plastic caps on the top of the post. The finished surface usually is galvanized and PVC coated, or alternatively. It usually adopts the installation method of burying additional 50 cm pass panels height into the earth. Special sizes can be provided as the clients request.
Fastenings: the panels and posts are jointed together with the special plastic clamp or high strength steel wire clamp. They are easy to install, and very solid.

Application: Holland Wire Mesh Fence (euro fence) is used as fencing, decoration or protection for various facilities in industry, agriculture, infrastructure, transport and so on. It can be used as garden fence and decorative fence.
