Steel Frame Shaker Screen

The main feature of steel frame screens are as follows:

  1. These screen products are constructed with two or three layers of 304 or 316 stainless steel wire cloth and then combined with a steel backing plate and a steel frame. According to different mesh size and hole size, we can get a better filtering effect.
  2. The bottom high strength steel frame combined with supporting bar with the moderate tension screen cloth can infinitely enhance the screen intensity and endurance and get a better filtering effect. Mesh size ranges from 40 to 325. The whole cloth is divided into some small independent surfaces to prevent the excessive expansion damage of small part. A special rubber plug is provided to repair damage, which not only saves the time to replace the screen, but also increase the efficiency and reduce the cost.

All product and company names are trademarks™ or registered® trademarks of their respective holders and not affiliated with Shengjia in any way.

Steel Frame Screens - 1

Art.No. SJSF-

Screen Common Model
Model Brand & Model for shaker Mesh Range Dimension (Length x Width) Weight
SJZ-8 Brandt BL-50 40–325 1253 × 635 mm 13.5 kgs
SJZ-9 Swaco Mongoose 40–325 1165 × 585 mm 14 kgs
SJZ-10 Kemtron 48 Series 40–325 1220 × 720 mm 17.5 kgs
SJZ-11 Brandt VSM300 40–325 913 × 650 mm 12.6 kgs

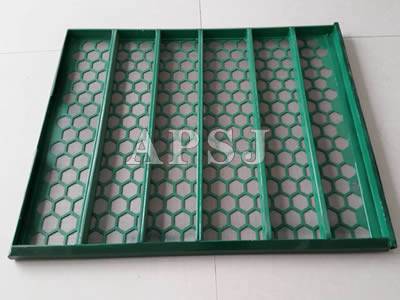

Steel Frame Screens - 2

Art.No. SJSF-

Steel Frame Screens - 3

Art.No. SJSF-

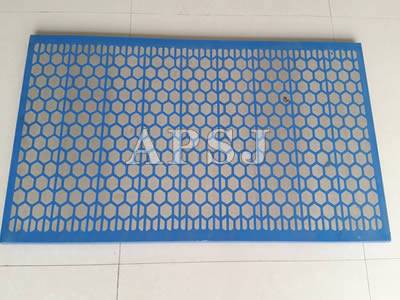

Steel Frame Screens - 4

Art.No. SJSF-

Steel Frame Screens - 45

Art.No. SJSF-

Steel Frame Screens - 6

Art.No. SJSF-
